In-line AOI(Automated Optical Inspection) detector GR-600B

AOI Inspection Ranges:

Solder paste printing: presence, absence, deviation, insufficient or excessive tin, short circuit, contamination;

Component inspection: missing parts, deviation, skewness, standing monument, side standing, flipping parts, polarity reversal, wrong parts, damaged AI components bending, PCB board foreign objects, etc;

Solder point detection: detection of excessive or insufficient tin, tin connection, tin beads, copper foil contamination, and soldering points of wave soldering inserts.

Send email to us

Product Detail

Product Tags

Device Parameter

PCB size	From 50x50mm to 500x400mm
PCB thickness	0.3~5mm
PCB bending	<3mm
CCD positioning accuracy	<10μm
Camera resolution	20μm，15μm，10μm
Minimum components testing	01005 chip, 0.25pitch IC
Industrial computer	P4 inter dual core, 2.5GHz CPU4G, DDR Memory500G HDD&CD Rom LCD display screen
Controller, operate software	VS series AOI test software
Outer size	109510051465(not included lamp holder)

1. Accurate and fast detection speed;

2. Intelligent high-definition digital CCD camera, stable and reliable image quality;

3. Simple, flexible, and fast programming and debugging;

4. Automatically recognize MARK on the A/B side;

5. Camera barcode recognition system;

6. CAD data import automatically searches for component libraries;

7. Automatic positioning system greatly improves programming speed;

8. Multi functional SPC statistical system (optional);

9.1 -to-many maintenance station system (optional);

10. Offline programming system (optional);

11. FTP server system (optional);

12. MES docking system (customized according to requirements)

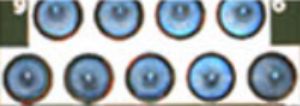

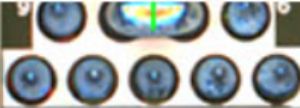

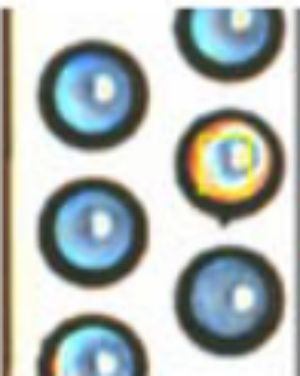

Defective soldering inspection

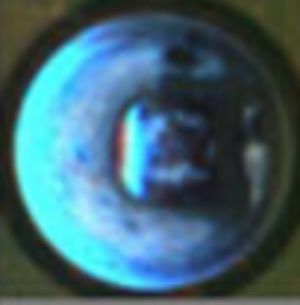

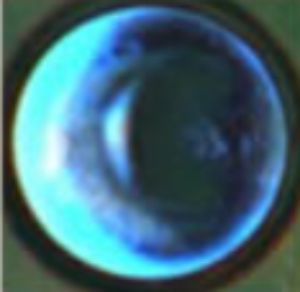

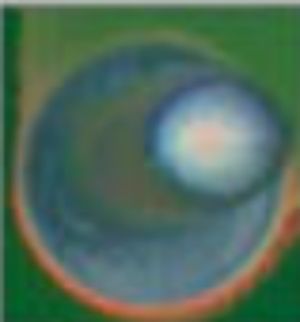

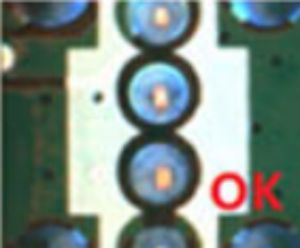

OK	NG(tin insufficiency)	OK	NG(tin insufficiency)

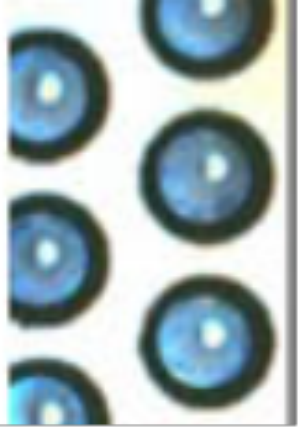

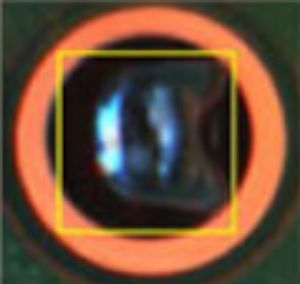

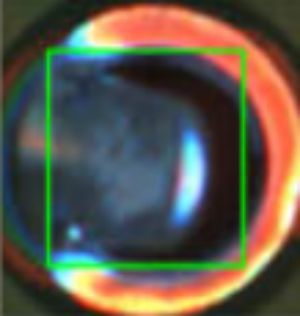

OK	NG( tin hole)	OK	NG( tin hole)

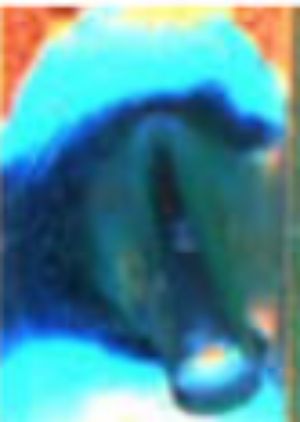

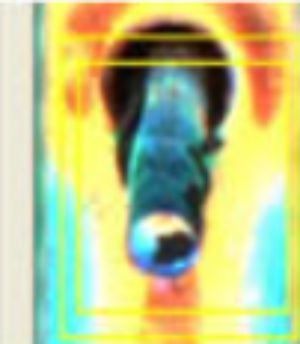

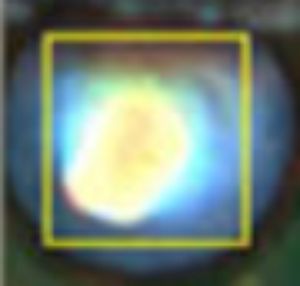

OK	NG(leak soldering)	OK	NG(leak soldering)

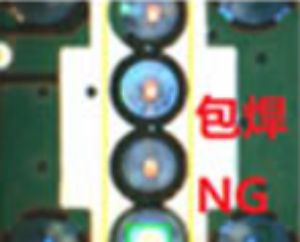

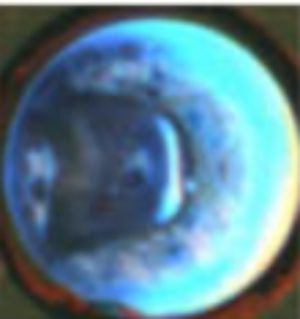

OK	NG(tin connection)	OK	NG(tin connection)

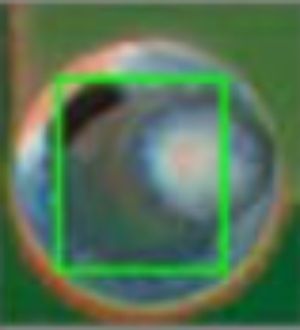

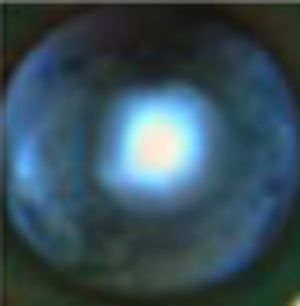

OK	NG(false solder)	OK	NG(false solder)
