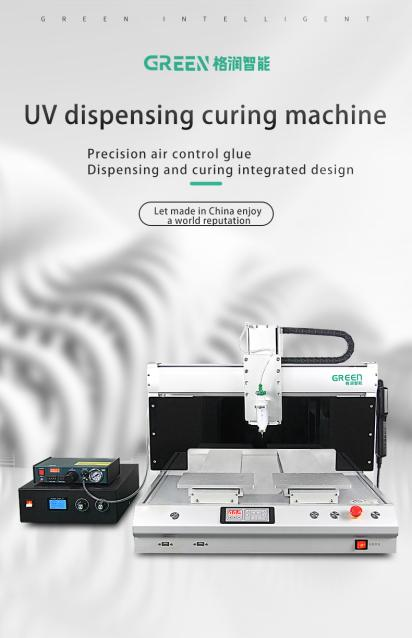

Green industry robot Desktop Type Automatic Glue Dispenser UV gluing machines with uv curing oven

Selective application industries: Mobile phones, computers, integrated circuits, tablets, digital, automotive industry, battery assembly, speaker dispensing mechanical parts sealing, hardware accessories, chip binding, semiconductor packaging, LED packaging dispensing PCB board dispensing

Send email to us

Product Detail

Product Tags

Device Parameter

Model	GR-5551D
Equipment travel	500500100(mm）
Dispensing method	Syringes
UV lamp curing are	200*100(unit：mm）
Movement speed	500mm/s
Motor Type	Stepper Motor
Program Recording Mode	99 groups
Repeatability	±0.02 mm
keywords	dispenser machine
Control System	Motion control card + handheld programmer
I/O Signals	12 In puts/12 Out puts
Display method	LED teaching box
Motion graphics	Point, line, arc, full circle, curve, polyline, spiral, ellipse
Power	3KW
Power supply	AC220V/50HZ
Size	L650mmW785mmH622mm

Device features

1. According to different needs, the dispensing speed/dispensing amount/dispensing trajectory (space point, line, arc, etc.) can be set separately.

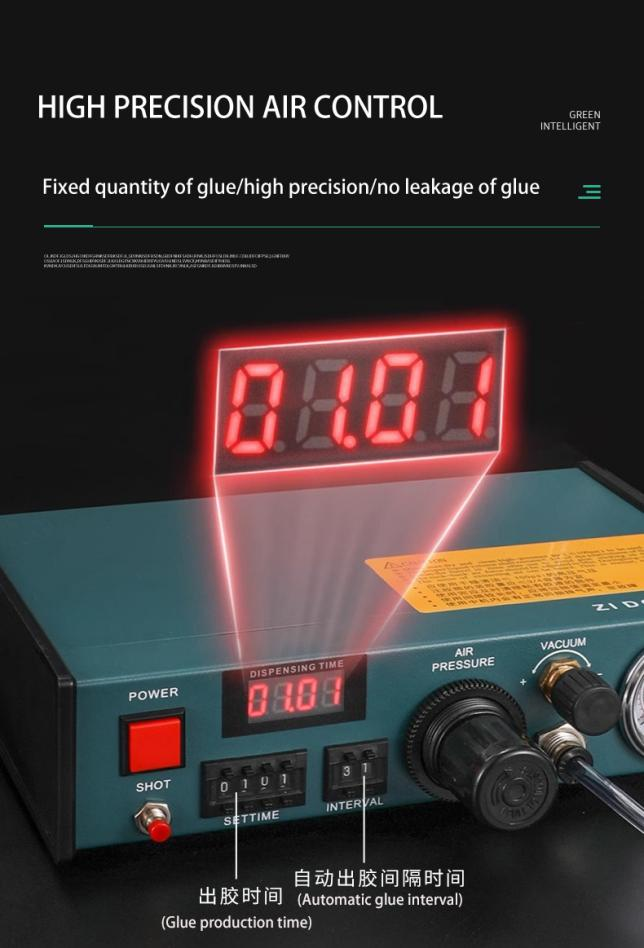

2. Precision back suction controller, imported solenoid valve, with back suction function, precise dispensing trajectory, uniform dispensing, clean dispensing, no drawing, no dripping.
3. A variety of dispensing needles, syringes, dispensing valves and controllers are available to meet different requirements, and the air pressure can be adjusted to control the amount of glue.
4. The equipment is highly accurate, and the important standard parts of the equipment are internationally renowned brands to ensure the accuracy and stability of the equipment.
5. The handheld teaching programmer is simple and easy to learn, and the dedicated operating software simplifies dispensing.
6. Super cost-effective, realizing intelligent dispensing at the lowest cost.
7. The program file can be uploaded/downloaded via a USB flash drive, which is convenient for data management and storage.

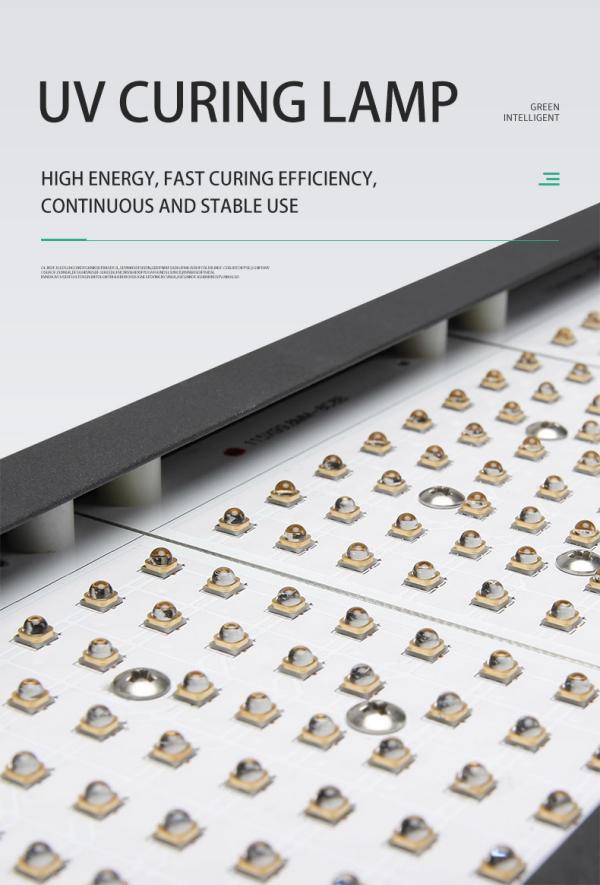

8. It comes with a double-head UV curing system.
