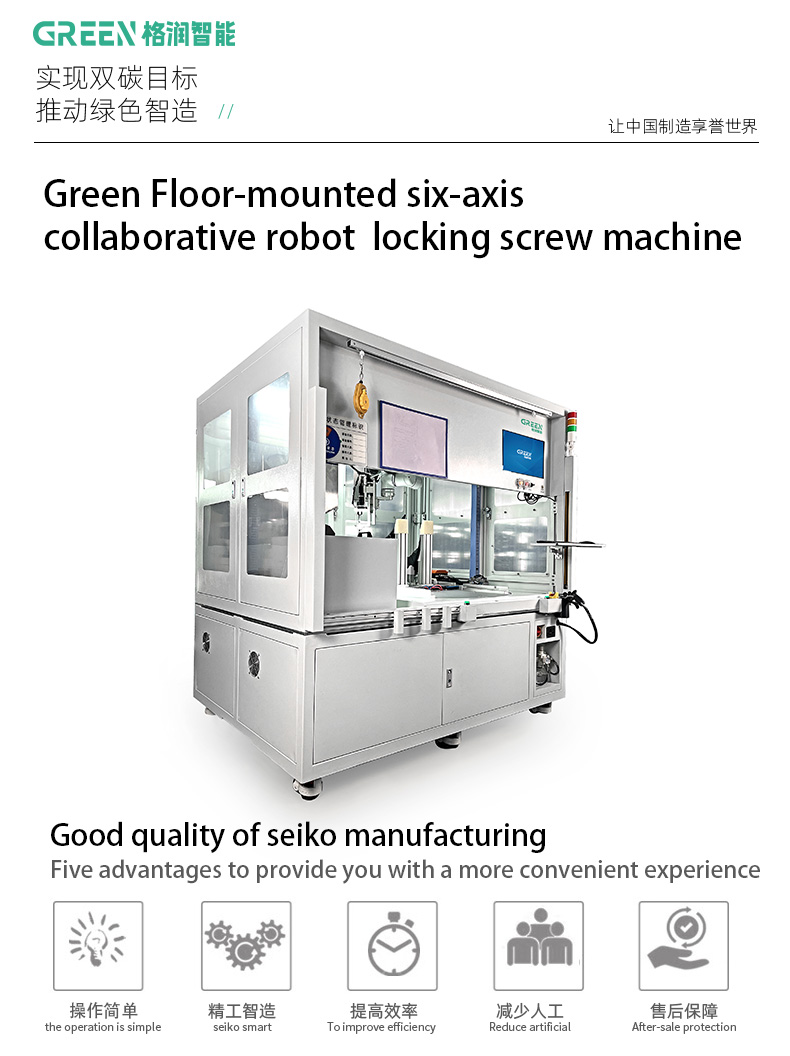

Green Floor type six axis adsorption type double lock screw machine

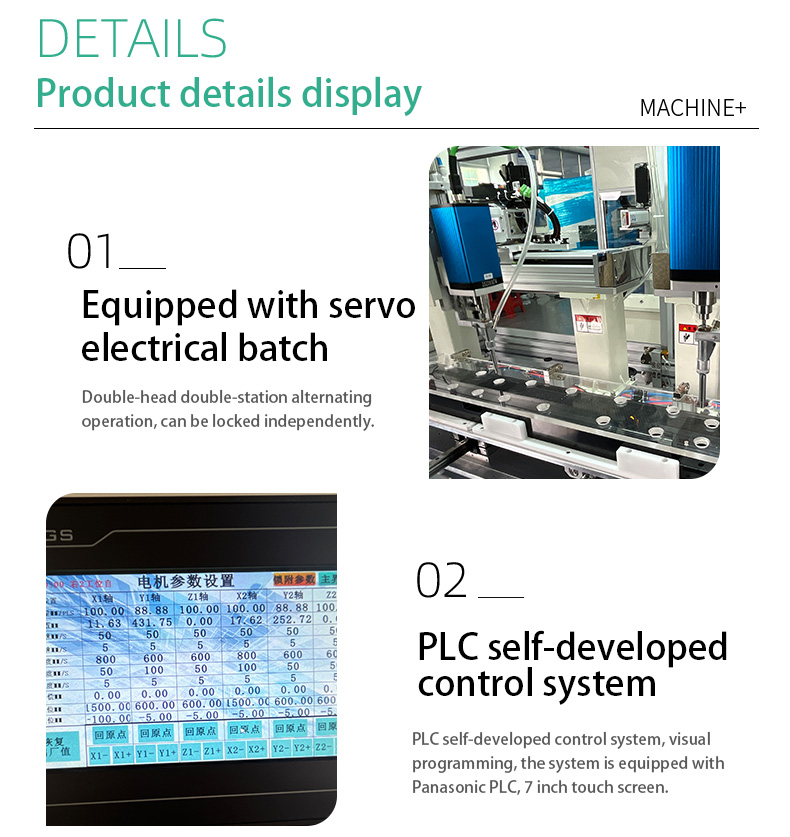

The equipment adopts six-axis sheet metal appearance structure design, and the machine is stable and repeatable with high precision. Equipped with servo batch, double-head double-station alternating type of operation, can be independently locked. The man-machine interface of PLC self-developed control system and hand-held programmer are used to facilitate personnel to coordinate. Save labor, easy to operate, easy to use. The machine can work 24 hours without stopping for a long time, high efficiency production. The floor frame is easy to move, and the electrical appliances are arranged in the chassis below for easy maintenance.

Send email to us

Product Detail

Product Tags

Device Parameter

Model	GR-XFSP33441LD
Y-axis load	10Kg
XYZ	500300300*100mm
Axis velocity	0-1200mm/s
Repeated positioning accuracy	±0.05 mm
Accreditation standards	CE
Program storage capacity	Group 999
Lock-up yield	99.98%
Working power supply	0.4-0.7MPa
p ow e r	Approx 1.5KW
Set the coordinate method	Touch screen + handheld programmer
Outer demension (LWH)	9007501750mm
Lock efficiency	A single screw is about 0.9-1.2S
Marketing Type	Hot Product 2024
Warranty of core components	2 Year
Brand Name	Green

Standard Configuration
Driving mode	Synchronous belt + closed loop motor repeatability ±0.05mm
Feeder	Blowing type feeder
Electrical batch	Smart electric batch
PLC+ Handheld programmer	15.6 inch industrial control machine + keyboard and mouse

Device features

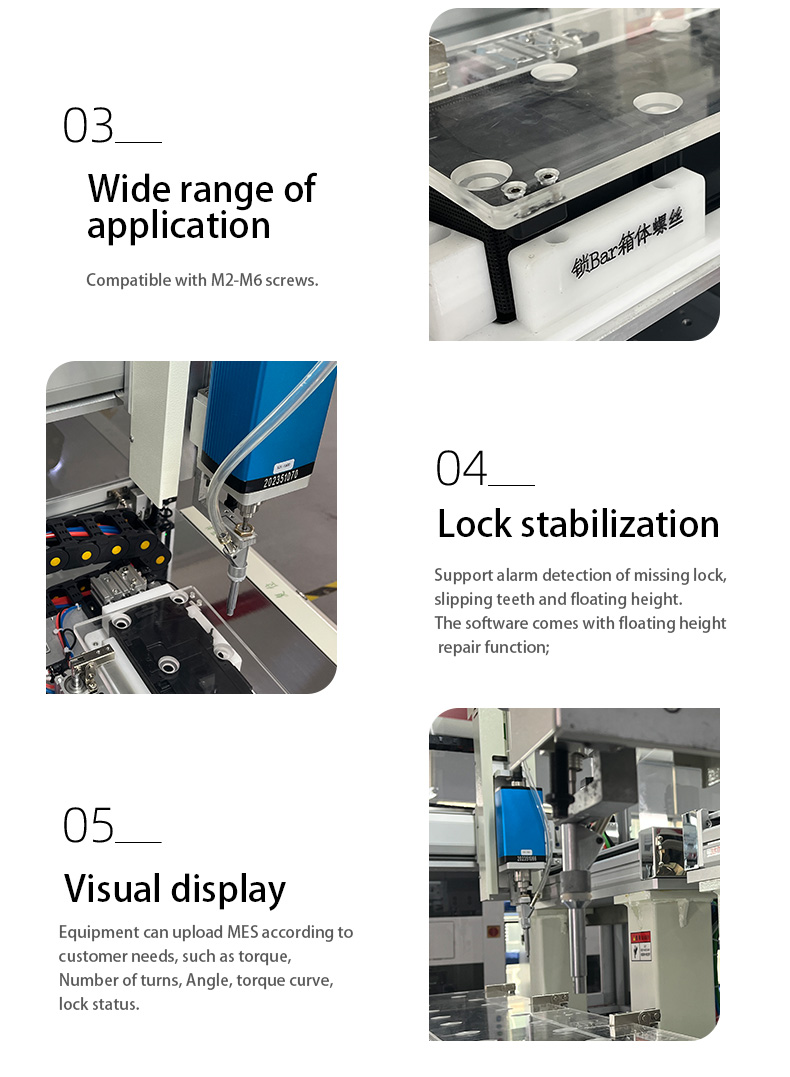

1. Support alarm detection of missing lock, slipping teeth and floating height. The software comes with floating height repair function;
2. The system is equipped with Panasonic PLC and 7-inch touch screen;
3. 999 different formulations can be edited at the same time, and a single product can lock up to 500 screws;
4. Compatible with M2-M6 screws;
5. Z-axis can be configured with laser displacement sensor (to measure floating height) and downpressure detection sensor (optional);
6. The electric batch can be equipped with HIOS electric batch, Qili speed electric batch, servo electric batch, intelligent electric batch, etc. (optional);
7. The equipment can upload MES according to customer requirements, such as torque, number of turns, Angle, torque curve, lock status.
8. Manual scanning and automatic scanning are available (optional)
9. Production data can be traced, and the software comes with quality control Kanban. All kinds of data can be uploaded and downloaded (optional).
